The Hydraulic Hand Pallet Truck is an essential item in most factories, stores and warehouses and it' importance is often overlooked! Without a reliable pallet truck fluid pallet movement is lost which can cause logistics hold ups across your operation.
XH Series Features.
.An economic alternative to the Pallet Truck, features a quality German design pump for long life and easy field servicing.
.Economic but very reliable, versatile and easy to use.
.A 200 degree handle pivot provides exceptional maneuverability in compact areas and comes with standard polyurethane wheels and rolers for rolling ease.
.Pallet Truck features a powder coat finish, robotic welds throughout, and grease fittings at all .pivot points for easy maintenance.
.XH series hand pallet trucks are made according to CE standard,CE/GS passed.
.This product can be custom manufactured to any specification. OEM orders are also acceptable.

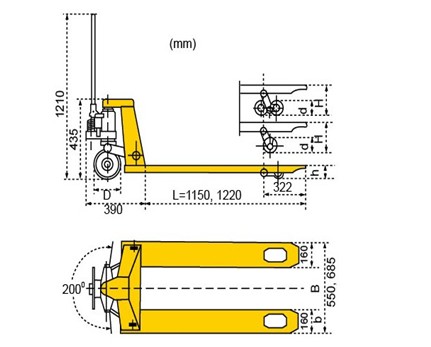

Model |
XH20S |
XH20L |
XH25S |
XH25L |
XH30S |
XH30L |
|
Capacity |
kg |
2000 |
2000 |
2500 |
2500 |
3000 |
3000 |
Lifting height |
mm |
115 |
|||||
Min.fork height |
mm |
85(75) |
|||||
Max.fork height |
mm |
200(190) |
|||||
Fork length |
mm |
1150 |
1220 |
1150 |
1220 |
1150 |
1220 |
Overall width |
mm |
550 |
685 |
550 |
685 |
550 |
685 |
Fork width |
mm |
160 |
|||||
Load roller |
mm |
Tandem Φ80×70,Single Φ80×93,Nylon,Polyurethane |
|||||
Steering wheel |
mm |
Φ200×50 Nylon,Polyurethane or Rubber |
|||||
Net weight |
kg |
75 |
78 |
76 |
79 |
85 |
87 |
Special fork length available:800,950,1000,1500,1800,2000mm
